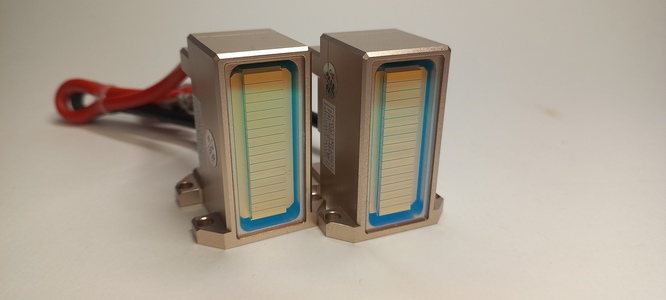

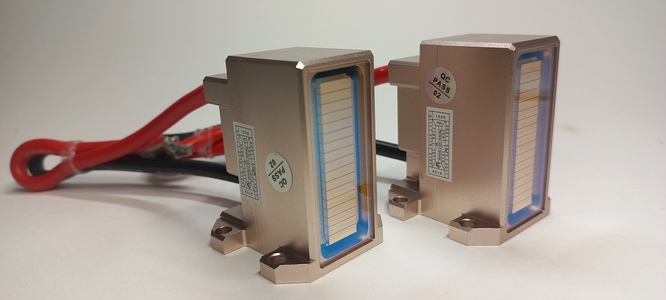

LST-L-1016BAI 808nm 16 bar laser stack at factory price.
In the world of modern cosmetology, technology is developing rapidly, and the LST-L-1016BAI stack, a powerful module based on a diode laser with a wavelength of 808 nm and 16 bars, has become a real breakthrough for beauty salons and equipment manufacturers.
At ROMSHI.COM, we offer this product at an affordable price with a quality guarantee and prompt delivery.
What is the LST-L-1016BAI laser stack? The LST-L-1016BAI is a macrochannel diode laser stack designed for integration into cosmetic laser devices. With a power of up to 1600 W, 16 bars and a height of 52.3 mm, it provides high performance and stable operation. The wavelength of 808 nm is considered the ‘gold standard’ for hair removal, as it is optimally absorbed by melanin in hair follicles without damaging the surrounding skin.
Technical overview:
LST-L-1016BAI: powerful 808 nm 16 bar macrochannel stack LST-L-1016BAI is one of the most sought-after macrochannel diode laser stacks in the cosmetic equipment industry for permanent hair removal. The model is actively used in Chinese and mixed-production devices (DVS/LST/LSR series and their analogues). Below is a detailed analysis of its characteristics, design features and actual operating parameters. Main technical characteristics Wavelength — 808 nm (±10 nm, typically 800–810 nm)
The classic ‘gold standard’ for diode hair removal: optimal absorption by melanin with relatively low absorption by haemoglobin and water.
Number of bars — 16 pcs.
Each bar — Chinese chip (most often 100 W nominal, less often 50–80 W depending on the batch and supplier).
Nominal output power — 1600 W (peak/maximum in QCW mode)
Calculation: 16 bars × 100 W/bar = 1600 W.
In real conditions, the device is more often operated in the range of 1200–1500 W to extend its service life.
Cooling type — macro-channel
Flow-through water cooling system with relatively large channels → less critical to distillate quality compared to micro-channel, but requires good flow and cleanliness of the coolant (5–10 l/min recommended, inlet temperature 20–25 °C).
Operating mode — QCW (quasi-continuous wave)
Typical pulse: 10–400 ms
Repetition frequency: 1–10 Hz
Maximum duty cycle: up to 20–30% (depending on the cooling system and driver settings).
Current and voltage per bar
Operating current per bar ≈ 90–110 A (at 100 W)
Voltage drop per bar ≈ 1.8–2.0 V
Total stack voltage ≈ 28–32 V
Total operating current of the stack ≈ 90–110 A
Dimensions and installation
Active area height (stack height) ≈ 52–53 mm (often specified as 52.3 mm)
Radiation window width ≈ 10–12 mm
Compatible with most variable spot handpieces popular in 2020–2025 devices.
Soldering type — usually AuSn (hard solder) or indium (soft solder)
AuSn is preferable for long service life at high power.
Why choose the LST-L-1016BAI from ROMSHI.COM? The market is full of similar products, but the LST-L-1016BAI stands out for its power (1600 W) and reliability. 16 bars ensure even energy distribution, guaranteeing stable results without ‘misses’. This stack is compatible with popular cosmetic laser models such as DVS, LAS and LSR, and can be easily integrated into existing systems.
Our specialists will help with installation, repair and consultation.
Fast delivery: We ship worldwide.
Order the LST-L-1016BAI now at ROMSHI.COM and step into the future of cosmetology.
