LST-L-1016BAI 808nm 16 bar laser stack at factory price.

In the world of modern cosmetology, technology is developing rapidly, and the LST-L-1016BAI stack, a powerful module based on a diode laser with a wavelength of 808 nm and 16 bars, has become a real breakthrough for beauty salons and equipment manufacturers.

At ROMSHI.COM, we offer this product at an affordable price with a quality guarantee and prompt delivery.

What is the LST-L-1016BAI laser stack? The LST-L-1016BAI is a macrochannel diode laser stack designed for integration into cosmetic laser devices. With a power of up to 1600 W, 16 bars and a height of 52.3 mm, it provides high performance and stable operation. The wavelength of 808 nm is considered the ‘gold standard’ for hair removal, as it is optimally absorbed by melanin in hair follicles without damaging the surrounding skin.

Technical overview:
LST-L-1016BAI: powerful 808 nm 16 bar macrochannel stack LST-L-1016BAI is one of the most sought-after macrochannel diode laser stacks in the cosmetic equipment industry for permanent hair removal. The model is actively used in Chinese and mixed-production devices (DVS/LST/LSR series and their analogues). Below is a detailed analysis of its characteristics, design features and actual operating parameters. Main technical characteristics Wavelength — 808 nm (±10 nm, typically 800–810 nm)
The classic ‘gold standard’ for diode hair removal: optimal absorption by melanin with relatively low absorption by haemoglobin and water.
Number of bars — 16 pcs.
Each bar — Chinese chip (most often 100 W nominal, less often 50–80 W depending on the batch and supplier).
Nominal output power — 1600 W (peak/maximum in QCW mode)
Calculation: 16 bars × 100 W/bar = 1600 W.
In real conditions, the device is more often operated in the range of 1200–1500 W to extend its service life.

Cooling type — macro-channel
Flow-through water cooling system with relatively large channels → less critical to distillate quality compared to micro-channel, but requires good flow and cleanliness of the coolant (5–10 l/min recommended, inlet temperature 20–25 °C).
Operating mode — QCW (quasi-continuous wave)
Typical pulse: 10–400 ms
Repetition frequency: 1–10 Hz
Maximum duty cycle: up to 20–30% (depending on the cooling system and driver settings).
Current and voltage per bar
Operating current per bar ≈ 90–110 A (at 100 W)
Voltage drop per bar ≈ 1.8–2.0 V
Total stack voltage ≈ 28–32 V
Total operating current of the stack ≈ 90–110 A
Dimensions and installation
Active area height (stack height) ≈ 52–53 mm (often specified as 52.3 mm)
Radiation window width ≈ 10–12 mm
Compatible with most variable spot handpieces popular in 2020–2025 devices.
Soldering type — usually AuSn (hard solder) or indium (soft solder)
AuSn is preferable for long service life at high power.

 Why choose the LST-L-1016BAI from ROMSHI.COM? The market is full of similar products, but the LST-L-1016BAI stands out for its power (1600 W) and reliability. 16 bars ensure even energy distribution, guaranteeing stable results without ‘misses’. This stack is compatible with popular cosmetic laser models such as DVS, LAS and LSR, and can be easily integrated into existing systems.

Our specialists will help with installation, repair and consultation.
Fast delivery: We ship worldwide.

Order the LST-L-1016BAI now at ROMSHI.COM and step into the future of cosmetology.

The diode stack (also known as the diode matrix, laser bar, or laser module) is the essential part of a diode laser handpiece. For Chinese hair removal lasers, the macro-channel diode stack is the most frequently used option, operating at a primary wavelength of 808 nm. To consult or order parts, please call us at +79180110234. We will assist you in finding the best price available.

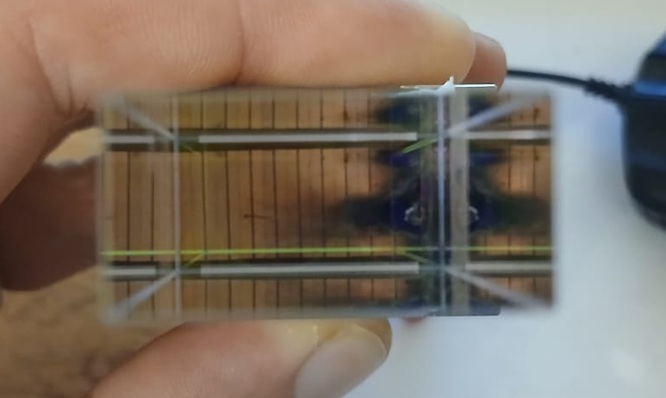

If your laser has stopped emitting flashes, the diode stack may be the issue. For your convenience, we provide FREE CONSULTATIONS FOR LASER PROBLEMS. You can contact us via WhatsApp or Telegram at +79180110234.

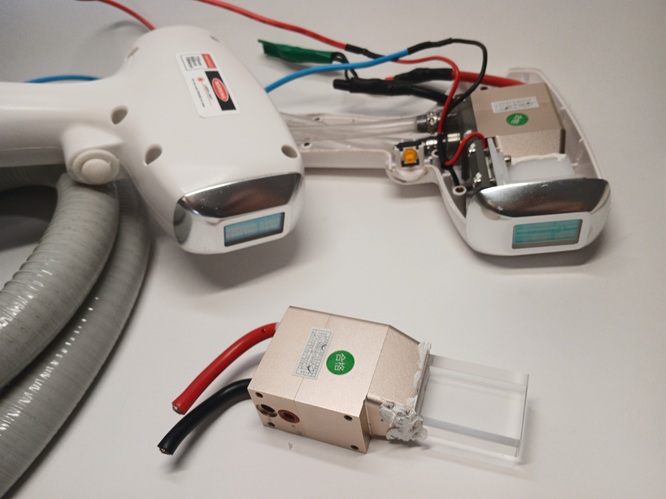

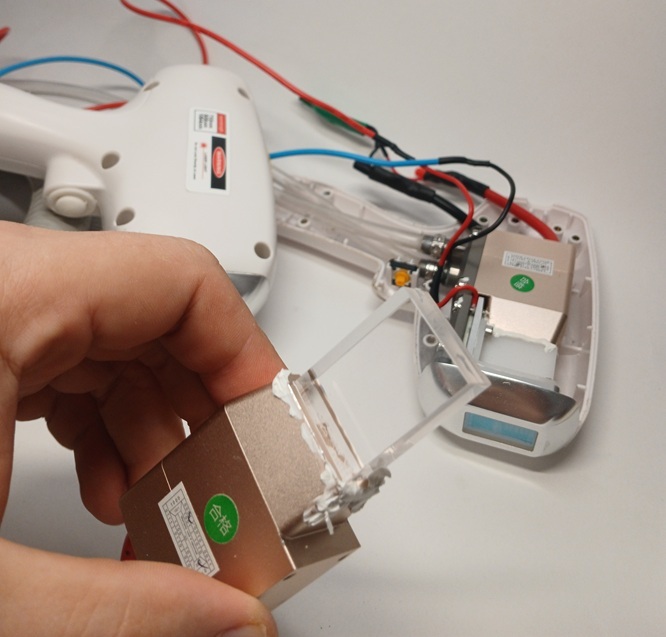

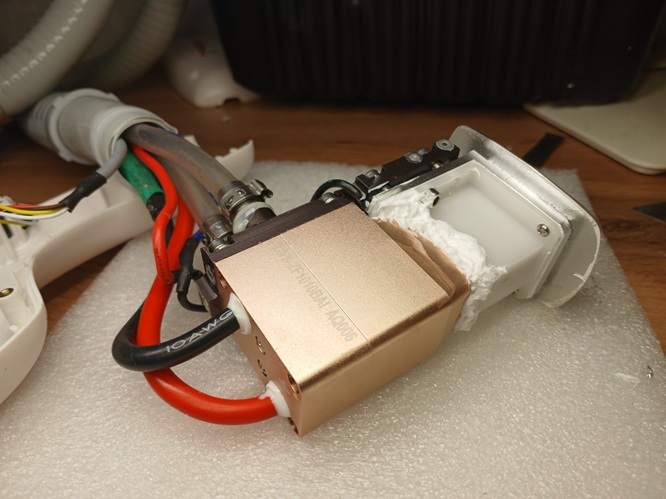

Below, you will find images from our hair removal laser repair services. We offer individual spare diode stacks with various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is a critical component of the diode laser handpiece, with the macro-channel variant being the most popular.

For online consultations about repairing diode lasers used for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please reach out to us at +79180110234. We also provide an overview of the hair removal laser structure.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are offered at the most competitive prices.

The diode stack, known as the diode matrix, laser bar, or laser module, is an integral part of a diode laser handpiece. For hair removal lasers manufactured in China, the macro-channel diode stack is the most commonly chosen option, operating at a primary wavelength of 808 nm. To consult or order parts, please call us at +79180110234. We will help you find the best price available.

If your laser is no longer emitting flashes, the diode stack might be the source of the problem. For your convenience, we offer FREE CONSULTATIONS FOR LASER PROBLEMS. You can contact us via WhatsApp or Telegram at +79180110234.

Below, you will find images from our hair removal laser repair services. We provide individual spare diode stacks with various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is a vital component of the diode laser handpiece, with the macro-channel variant being the most popular.

For online consultations about repairing diode lasers used for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please reach out to us at +79180110234. We also provide an overview of the hair removal laser structure.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are offered at the most competitive prices.

The diode stack (also called the diode matrix, laser bar, or laser module) is a crucial component in a diode laser handpiece. The macro-channel diode stack is the most frequently utilized option for Chinese hair removal lasers, operating at a primary wavelength of 808 nm. For consultations or to order parts, please contact us at +79180110234. We will assist you in finding the best price available.

If your laser has stopped flashing, the diode stack might be the issue. For your convenience, we provide FREE CONSULTATIONS FOR LASER ISSUES. You can reach us via WhatsApp or Telegram at +79180110234.

Below, you will see images from our hair removal laser repair services. We offer individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is a crucial part of the diode laser handpiece, with the macro-channel type being the most popular.

For online consultations regarding the repair of diode lasers for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please contact us at +79180110234. We also offer an overview of the structure of hair removal

The diode stack, often referred to as the diode matrix, laser bar, or laser module, is an essential part of a diode laser handpiece. For hair removal lasers made in China, the macro-channel diode stack is the most commonly used type, functioning at a primary wavelength of 808 nm. To consult or order parts, please reach out to us at +79180110234. We will help you find the best available price.

If your laser has ceased to emit flashes, the diode stack may be responsible. For your convenience, we offer FREE CONSULTATIONS FOR LASER PROBLEMS. You can contact us via WhatsApp or Telegram at +79180110234.

Below, you can see images from our hair removal laser repair services. We provide separate spare diode stacks with various power ratings and configurations, sourced directly from manufacturers in China. The 808 nm diode stack is a critical component of the diode laser handpiece, with the macro-channel variant being the most popular.

For online consultations regarding the repair of diode lasers used for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please reach out to us at +79180110234. We also provide an overview of the hair removal laser structure.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are offered at the lowest prices.

The diode stack (also known as the diode matrix, laser bar, or laser module) is a fundamental component of a diode laser handpiece. The macro-channel diode stack is the most popular choice for Chinese hair removal lasers, operating at a primary wavelength of 808 nm. For inquiries or to place an order, please call us at +79180110234. We’ll help you find the best price available.

If your laser has stopped flashing, the diode stack could be the culprit. For your convenience, we provide FREE CONSULTATIONS FOR LASER ISSUES. You can reach us via WhatsApp or Telegram at +79180110234.

Below, you’ll find images from our hair removal laser repair services. We offer individual spare diode stacks in various power ratings and configurations directly from manufacturers in China. The 808 nm diode stack is a key component of the diode laser handpiece, with the macro-channel type being the most commonly used.

For online consultations about repairing diode lasers for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please contact us at +79180110234. We also provide an overview of the structure of hair removal lasers.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are available at the most competitive prices.

The diode stack, often referred to as the diode matrix, laser bar, or laser module, is an essential element of a diode laser handpiece. For hair removal lasers produced in China, the macro-channel diode stack is the most commonly selected option, operating at a primary wavelength of 808 nm. To consult or order parts, please reach out to us at +79180110234. We are committed to helping you find the best price available.

If your laser is no longer producing flashes, the diode stack may be the culprit. For your convenience, we offer FREE CONSULTATIONS FOR LASER PROBLEMS. You can reach us via WhatsApp or Telegram at +79180110234.

Below, you will find images from our hair removal laser repair services. We provide individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is essential for the diode laser handpiece, with the macro-channel variant being particularly popular.

For online consultations regarding the repair of diode lasers used for hair removal—covering handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal—please reach out to us at +79180110234. We also provide an overview of the structure of hair removal lasers.

The diode stack, also known as the diode matrix, laser bar, or laser module, is a crucial part of a diode laser handpiece. The macro-channel diode stack is the most popular choice for hair removal lasers made in China, operating at a primary wavelength of 808 nm. To consult or order parts, please call us at +79180110234. We’re dedicated to helping you find the best price available.

If your laser has stopped flashing, the diode stack may be the culprit. For your convenience, we offer FREE CONSULTATIONS FOR LASER ISSUES. You can contact us via WhatsApp or Telegram at +79180110234.

Below, you’ll see images from our hair removal laser repair services. We provide individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is a key component of the diode laser handpiece, with the macro-channel type being the most favored.

For online consultations regarding diode laser repairs for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please reach out to us at +79180110234. We also offer an overview of the hair removal laser structure.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are offered at the most competitive prices.

The diode stack, commonly referred to as the diode matrix, laser bar, or laser module, is a vital component of a diode laser handpiece. For hair removal lasers manufactured in China, the macro-channel diode stack is the most frequently selected option, operating at a primary wavelength of 808 nm. If you need to consult or order parts, please contact us at +79180110234. We are here to help you find the best price available.

If your laser is not producing flashes anymore, the diode stack might be the issue. For your convenience, we offer FREE CONSULTATIONS FOR LASER PROBLEMS. You can reach us via WhatsApp or Telegram at +79180110234.

Below, you will find images from our hair removal laser repair services. We provide individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is essential for the diode laser handpiece, with the macro-channel variant being particularly popular.

For online consultations regarding diode laser repairs for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please contact us at +79180110234. We also provide an overview of the structure of hair removal lasers.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are available at competitive prices.

The diode stack, also known as the diode matrix, laser bar, or laser module, is an essential part of a diode laser handpiece. The macro-channel diode stack is the most frequently utilized option for Chinese hair removal lasers, operating at a primary wavelength of 808 nm. For inquiries or to place an order, please call us at +79180110234. We’ll assist you in finding the best price available.

If your laser has ceased to emit flashes, the diode stack might be the problem. For your convenience, we offer FREE CONSULTATIONS FOR LASER ISSUES. You can contact us through WhatsApp or Telegram at +79180110234.

Below, you’ll find images from our hair removal laser repair services. We provide individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is a critical component of the diode laser handpiece, with the macro-channel variant being the most popular.

For online consultations regarding the repair of diode lasers for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please reach out to us at +79180110234. We also offer an overview of the structure of hair removal lasers.

The diode stack, also referred to as the diode matrix, laser bar, or laser module, is a crucial component of a diode laser handpiece. For Chinese hair removal lasers, the macro-channel diode stack is the most commonly used option, operating at a primary wavelength of 808 nm. To consult or order parts, please contact us at +79180110234. We are here to assist you in finding the best available price.

If your laser has stopped emitting flashes, the diode stack may be the issue. For your convenience, we provide FREE CONSULTATIONS FOR LASER ISSUES. You can reach us via WhatsApp or Telegram at +79180110234.

Below, you will see images from our hair removal laser repair services. We offer individual spare diode stacks in various power ratings and configurations directly from manufacturers in China. The 808 nm diode stack is a key component of the diode laser handpiece, with the macro-channel type being the most popular.

For online consultations regarding the repair of diode lasers used for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please contact us at +79180110234. We also provide an overview of the structure of hair removal lasers.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are available at highly competitive prices

The diode stack, commonly known as the diode matrix, laser bar, or laser module, is a key part of a diode laser handpiece. The macro-channel diode stack is the most popular choice for hair removal lasers made in China, operating at a primary wavelength of 808 nm. If you need to consult or order parts, please reach out to us at +79180110234. We’re here to help you find the best price available.

If your laser has ceased to emit flashes, the diode stack might be the reason. For your convenience, we provide FREE CONSULTATIONS FOR LASER PROBLEMS. You can connect with us via WhatsApp or Telegram at +79180110234.

Below, you’ll find images from our hair removal laser repair services. We offer individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is essential for the diode laser handpiece, with the macro-channel variant being especially favored.

For online consultations regarding diode laser repairs for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please contact us at +79180110234. We also provide an overview of the structure of hair removal lasers.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are offered at competitive prices.

The diode stack, also referred to as the diode matrix, laser bar, or laser module, is an integral component of a diode laser handpiece. The macro-channel diode stack is the preferred choice for hair removal lasers produced in China, operating at a primary wavelength of 808 nm. For consultations or to place orders, please reach out to us at +79180110234. We are dedicated to helping you find the best price available.

If your laser has stopped emitting flashes, the diode stack may be the culprit. For your convenience, we offer FREE CONSULTATIONS FOR LASER ISSUES. You can contact us via WhatsApp or Telegram at +79180110234.

Below, you will find images showcasing our hair removal laser repair services. We provide individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is crucial for the diode laser handpiece, with the macro-channel version being particularly popular.

For online consultations regarding diode laser repairs for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please contact us at +79180110234. We also provide an overview of the structure of hair removal lasers.

We offer 808 nm diode stacks in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are available at competitive prices. 😊

The diode stack, also known as the diode matrix, laser bar, or laser module, is a crucial element of a diode laser handpiece. For hair removal lasers manufactured in China, the macro-channel diode stack is the most commonly chosen option, operating at a primary wavelength of 808 nm. If you need assistance or wish to order parts, please contact us at +79180110234. We are committed to helping you find the best price available.

If your laser has stopped producing flashes, the diode stack might be the issue. For your convenience, we provide FREE CONSULTATIONS FOR LASER PROBLEMS. You can contact us via WhatsApp or Telegram at +79180110234.

Below, you will find images from our hair removal laser repair services. We offer individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is essential for the diode laser handpiece, with the macro-channel variant being particularly popular.

For online consultations regarding diode laser repairs for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please reach out to us at +79180110234. We also provide an overview of the structure of hair removal lasers.

The diode stack, often referred to as the diode matrix, laser bar, or laser module, is an essential part of a diode laser handpiece. The macro-channel diode stack is the most popular choice for hair removal lasers produced in China, operating at a primary wavelength of 808 nm. For consultations or orders, please contact us at +79180110234. We’re here to assist you in finding the best price available.

If your laser has stopped emitting flashes, the diode stack may be the problem. For your convenience, we offer FREE CONSULTATIONS FOR LASER ISSUES. You can reach us via WhatsApp or Telegram at +79180110234.

Below, you’ll find images from our hair removal laser repair services. We provide individual spare diode stacks in various power ratings and configurations sourced directly from manufacturers in China. The 808 nm diode stack is a key component of the diode laser handpiece, with the macro-channel type being the most favored.

For online consultations regarding diode laser repairs for hair removal, including handpiece repairs, diode laser handpieces, 808 nm laser epilators, diode stack replacements, diode matrix installations, cosmetic laser handpiece restorations, and sales of 808 nm diode lasers for hair removal, please contact us at +79180110234. We also provide an overview of the structure of hair removal lasers.

We have 808 nm diode stacks available in power ratings of 200, 250, 300, 350, 400, 500, 600, 800, 1000, 1200, 1600, and 2400 watts. DVS and LST stacks are offered at competitive prices.
